When you look at a waveform diagram youll notice that the vertical axis measures the EtCo2 value. What is end-tidal CO2 etCO2.

A Time Based Capnogram Inspiratory Segment Phase 0 And Expiratory Download Scientific Diagram

This leads to two foundational principles of etCO2.

. When calculating the gradient the clinician is comparing the carbon dioxide CO 2 sampled from the ABG. Reading the Waves When it comes to capnography everyone knows the normal adult respiratory rate of 12-20 breaths per minute and most people know or quickly learn that the normal quantity of exhaled CO is 35- 45 mmHg. ETco 2 values may be displayed solely as a numeric value capnometry or with a waveform capnography.

October 3rd 2018 pdcapnography Training Resources. OPABVM or Nasal Oxygen mask can be placed over the nasal adapter Waveform shape is particularly helpful in conjunction with the reading in mmHg Nasal monitoring may require support with tape if necessary. The normal values are 5 to 6 CO2 which is equivalent to 35-45 mmHg.

In fact its commonly called the ventilation vital sign. The waveform is called capnograph and shows how much CO 2 is present at each phase of the respiratory cycle. 3 By the time gas reaches the endotracheal tube the end-tidal CO2 concentration will be lower than the arterial CO2 tension.

The amount of CO2 at the end of exhalation or end-tidal CO2 ETCO2 is normally 35-45 mm HG. The horizontal axis shows the time elapsed. In severe cases of respiratory distress increased effort to breathe does not effectively eliminate CO2.

Extraordinarily rarely etCO2 can be slightly higher than arterial CO2 in pregnant patients with otherwise normal lungs. 1 Arterial CO2 should be higher than etCO2. Also called capnometry or capnography this noninvasive technique provides a breath-by-breath analysis and a continuous recording of ventilatory status.

End-tidal CO2 EtCO2 monitoring is a noninvasive technique which measures the partial pressure or maximal concentration of carbon dioxide CO2 at the end of an exhaled breath which is expressed as a percentage of CO2 or mmHg. The number is called capnometry which is the partial pressure of CO 2 detected at the end of exhalation ranging between 35 - 45 mm Hg or 40 57 kPa. The height of the capnography waveform accompanies this number on the monitor as well as the respiratory rate.

Strategies for Treatment S The waveform morphology during CPR can help us decide what our next intervention should be. 78 Nitrogen 21 Oxygen 1 CO2 and other gases Exhaled gases. Analysis From the National Emergency Airway Registry for Children NEAR4KIDS Registry.

35-45 mmHg A B C E 40 0 BronchospasmAsthma Other Possible. The normal values for patients regardless of age sex race or size range between 35-45 mm Hg or about 5 CO2. Understanding End Tidal CO 2 Monitoring.

Waveforms may be time-based CO 2 over time or volume-based CO 2 plotted over exhaled tidal volume. End-tidal carbon dioxide monitoring. End-Tidal Carbon Dioxide Use for Tracheal Intubation.

11172009 4 Measuring End Tidal CO2 Daltons Law. End tidal CO 2 monitoring is represented as a number and a graph on a monitor. Share Your Capno Story With Us.

Normal reference range is 35 - 45 mmHg but varies in unsealed circuits with a mixture of gases eg. End tidal co2 waveforms. The normal capnography waveform.

A live capnography display scrolls in real-time and is often unlabeled. MmHg Relate to the air we breath. Total pressure of a gas is the sum of the partial pressures of the gas Expired CO2 measured PetCO2 mmHg in waveform Percentage Normal Levels PaO2 85-100mmHg PaCO2 35-45mmHg Percentage vs.

Inspiration Normal Capnogram The normal capnogram is a waveform which represents the varying CO 2 level throughout D the breath cycle. The height of the capnography waveform accompanies this number on the monitor as well as the. The amount of CO2 at the end of exhalation or end-tidal CO2 ETCO2 is normally 35-45 mm HG.

An elevated inspiratory base line and phase i indicates co2 rebreathing which is abnormal with circle breathing systems and suggests either an exhausted c02 absorbent in circle system or incompetent valves1-6 it is normally anticipated with the bain anaesthetic system using controlled ventilation47 a sudden elevation in both the base line. End-tidal carbon dioxide ETco 2 monitoring provides valuable information about CO 2 production and clearance ventilation. For this technology to be useful the critical care nurse must have a clear understanding of the normal capnography waveform and what the alterations in this waveform represent.

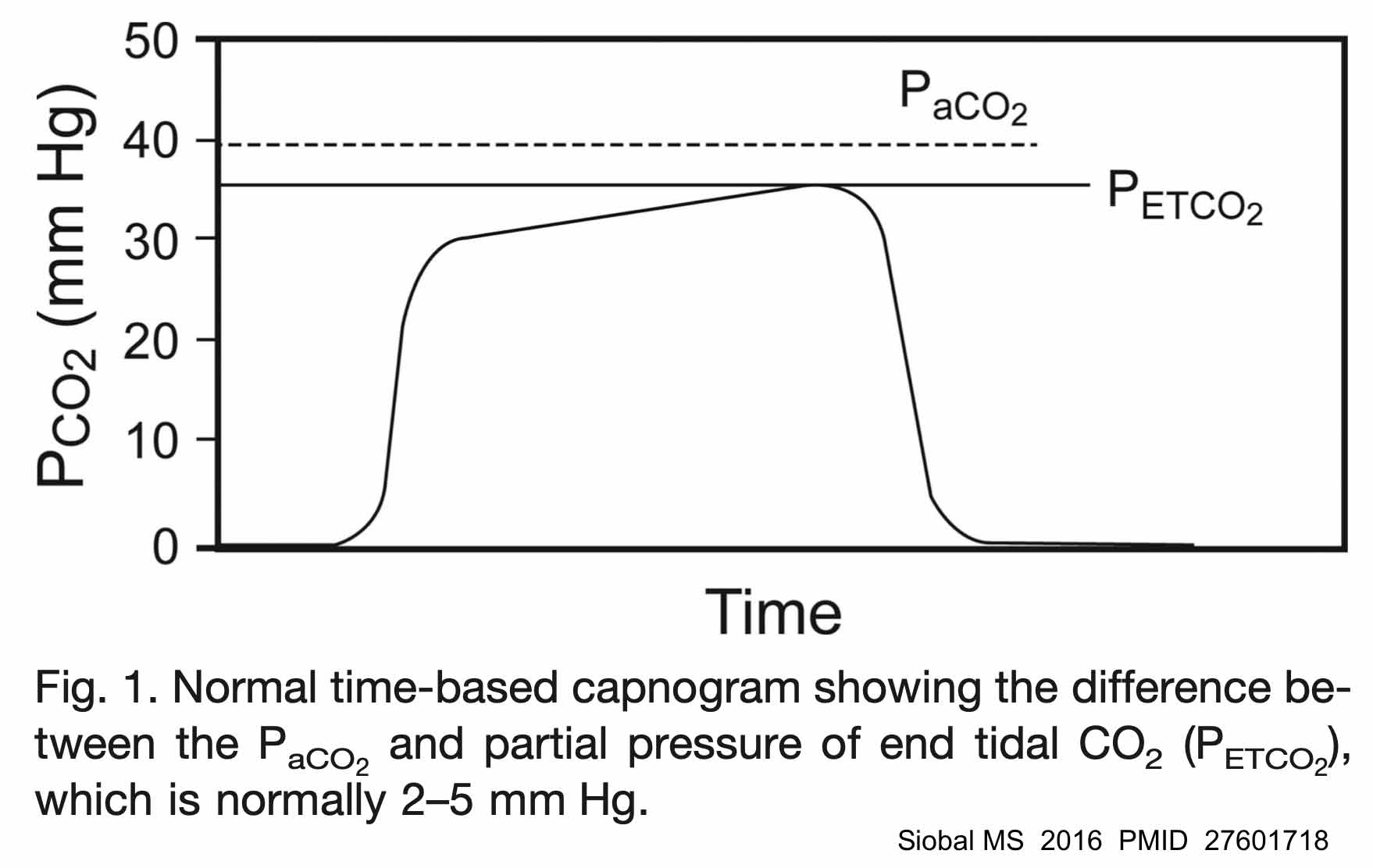

An end-tidal capnography waveform measures and displays the peak amount of CO at the end of exhalation. An increase of EtCO2 to normal values 35-45 mm Hg or an increase by 10 mm Hg is about 97 specific. The gradient is the difference between the arterial carbon dioxide partial pressure PaCO 2 and the etCO 2 partial pressure is a result of the relationship between ventilation and perfusion or rather ventilation-perfusion matching VQ.

CO 2 mmHg 15 sec. One caveat is that sodium bicarbonate may transiently raise the EtCO2 but this does not reflect ROSC. A VITAL sign worth watching Abstract Capnography is the monitoring of end-tidal carbon dioxide in waveform and numeric display.

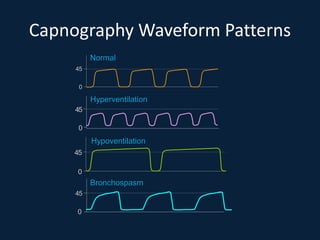

What is a normal etco2. 35-45 mmHg A B C E 40 0 BronchospasmAsthma. Normal and abnormal capnography waveforms infographic.
